Applications
Industrial Automation
Process monitoring, quality control, grinding, polishing, and machine tending in production environments.
Process Consistency at Scale

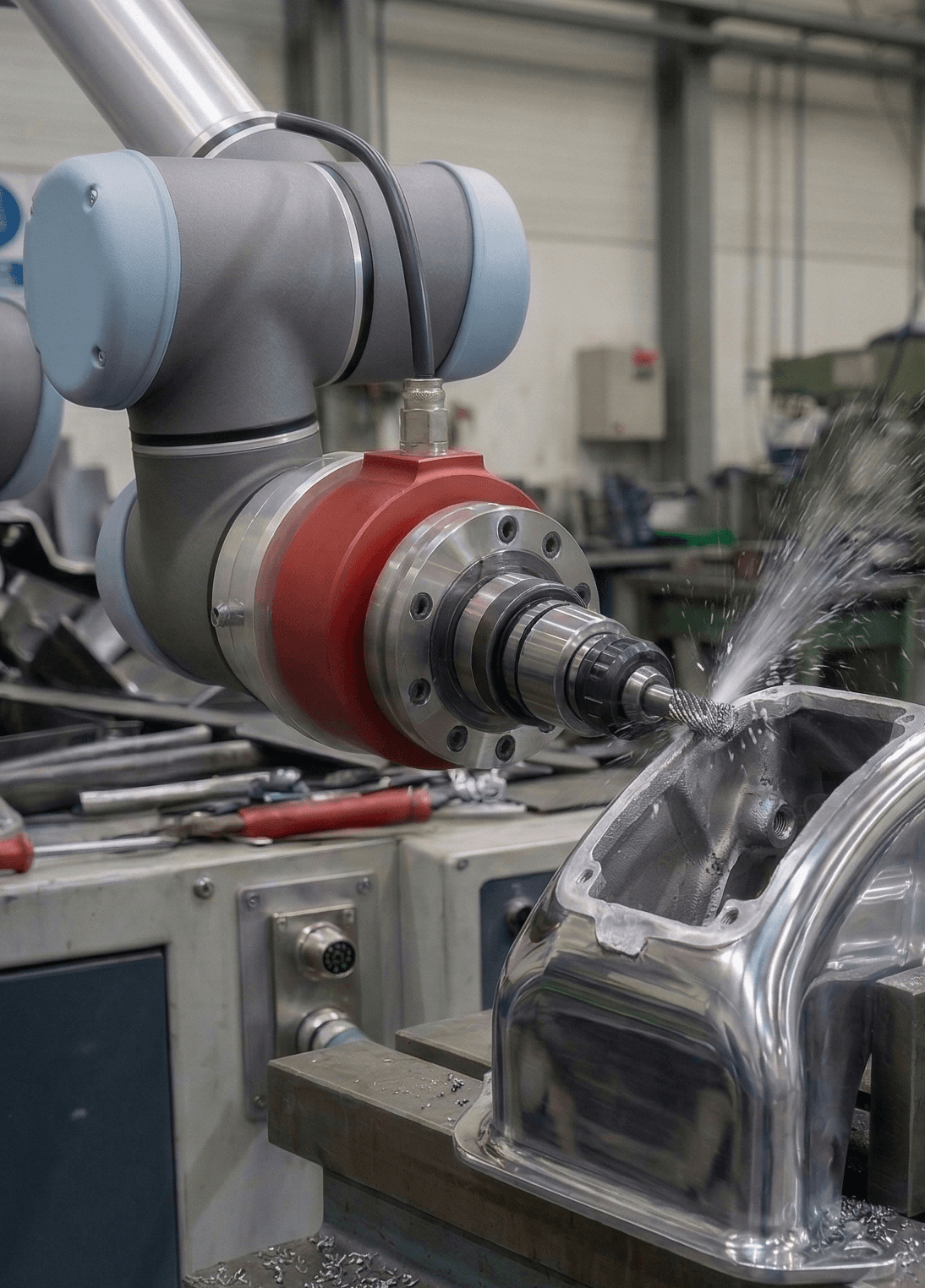

Grinding, polishing, deburring, and assembly operations drift with tool wear, part variability, and thermal changes. Without direct force feedback, quality depends on rigid fixturing and conservative programming — limiting throughput and flexibility. The AXIOM-2000 handles ±2,000 N on Fx/Fy and ±6,000 N on Fz with 0.100 N resolution, covering the process force range of most robotic grinding and deburring tasks while resolving the fine transitions that signal tool contact.
Sealed for Harsh Environments
IP67-rated construction survives the coolant, metal dust, and wash-down cycles of production cells without additional enclosures. Overload protection to ±6,000 N on Fx/Fy and ±18,000 N on Fz absorbs crashes without sensor failure. The -20 °C to +60 °C operating range covers foundry, automotive, and food-processing environments within a single sensor family.
Key Metrics
±2,000 N
Fx/Fy Range (AXIOM-2000)
IP67
Environmental Protection
0.100 N
Force Resolution (AXIOM-2000 Fx/Fy)
Challenges
- Tool wear shifts the effective cutting force at constant position commands; compensation requires real-time force feedback, not offline tool-life counters.
- Production environments combine coolant, chips, and vibration — sensors that are not sealed to IP67 require protective enclosures that add compliance between the sensor and the process.
- Press-fit and insertion operations must hit force-displacement signatures within part tolerance bands across thousands of cycles without recalibration.
Outcomes

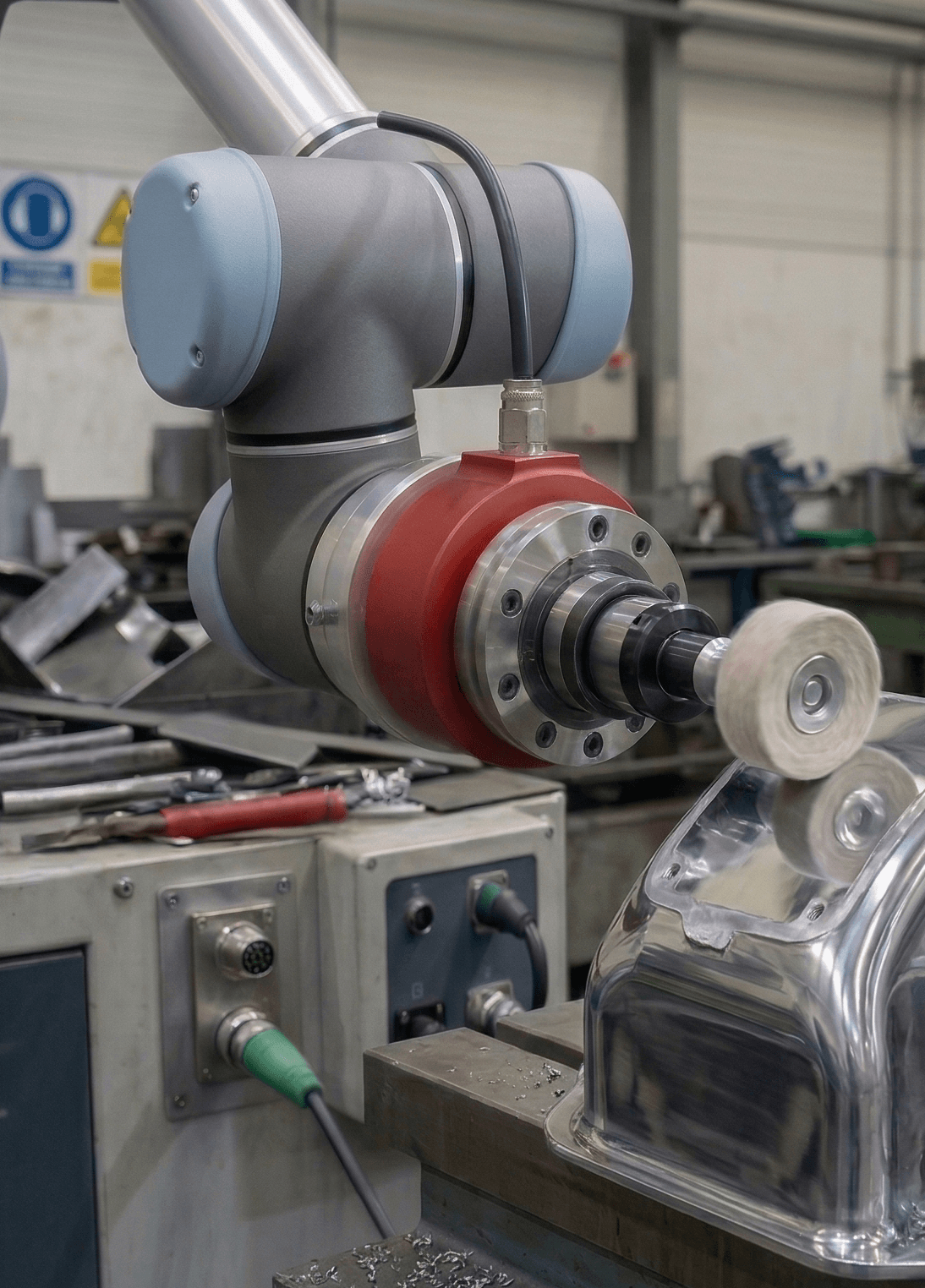

- Closed-loop force control on grinding and polishing tasks compensates for tool wear in real time, maintaining consistent surface finish across the full tool life.
- IP67 sealing and mechanical overload protection eliminate sensor replacement as a maintenance item in coolant-heavy cells.
Recommended Products
Recommended
AXIOM-2000Coming Soon
High-range industrial model for grinding, insertion, and force-controlled assembly.
Recommended
AXIOM-HS-2000Coming Soon
High-range hollow-shaft model for industrial end-effectors with dense routing needs.
Related
Collaborative Robots
End-effector force-torque measurement at ISO/TS 15066 transient contact limits gives cobots a direct measurement of contact force — not an estimate derived from motor currents — enabling genuinely force-limited operation.
Safe human-robot interaction, force-limited assembly, and adaptive process control for cobots.
Related
Aerospace & Defense
Factory-calibrated 6×6 cross-coupling compensation and IP67 sealing deliver traceable multi-axis load data in environments where single-axis load cells leave cross-talk uncharacterized.
Structural testing, precision assembly, and robotic handling for aerospace and defense programs.
